AISI 304 Chrome Plated rod
AISI 304 Chrome Plated Rod
Material Grade:SS304/SS304L/1.4301/1.4307/UNS S30400/SUS304/304S31/X5CrNi18-10/27CN18-09
Size Range : 12 MM To 800 MM (Above 800 MM can be made as per customer design & specification)
Maximum Length : Up to 7500 MM or as request
Hard Chrome Plating Thickness : min.25 To 30 Microns(As per request)
Surface Finish : RA0.1µm – RA0.4 µm
Chrome Surface Hardness : 850 to 1000HV
Straightness : 0.1 per meter max.
aISI 304 Chrome Plated rod Chemical Composition
AISI 304 Chrome Plated Rod Equivalent Grades
304 Chrome Plated Rod are typically manufactured using one of two processes: hot rolling or cold drawing.
Hot rolling involves heating the stainless steel billet to a temperature above its recrystallization temperature and then rolling it into a round shape. The resulting bar is then cooled and cut to the desired length.
Cold drawing, on the other hand, involves pulling the stainless steel through a series of dies to create the desired shape and size.
304 Chrome Plated Stainless Steel Bar/304 Stainless Steel Round Bar is austenitic steel with non-magnetic features in the annealed form that offers excellent corrosion resistance to both atmospheric and chemical exposures, in the company of elevated resistance to oxidation.
304 Stainless Steel Round Bar (SS 304 Rods) has excellent forming and welding features. To the national and international quality of raw materials, we also offer these UNS S30400 Round Bars (also known as WNR 1.4301 Bars) in customized sizes and thicknesses per our esteemed clients’ specific demands at market-leading prices.
aISI 304 Chrome Plated Rod Applications
304 Stainless Chrome Plated Rod Applications:• Pneumatic / Hydraulic Cylinder Shaft
• Textile Components
• Pump Shafts & Rotors
• Fitness Equipment
• Automobile & Mechanical Components
• Plastic & Rubber Rolls, Moulds, Dies, Screws etc
AISI 304 Chrome Plated Rod Salt Spray Testing
Wuxi Fengyu is equipped with advanced salt spray test chambers, we precisely control temperature, humidity, and salt spray concentration to simulate real-world corrosive environments. Our team of skilled engineers, proficient in NSS, ASS, and CASS tests, customizes plans based on industry standards and customer needs. We can do from 96 hours to 1000 hours salf Spray Testing.
AISI 304 Chrome Plated rod for Hydraulic Use
1.Corrosion – Resistant in Hydraulic Fluids
Hydraulic fluids can be corrosive. But with 18% chromium and 8% nickel, the 304 stainless steel base resists rust and corrosion. This keeps the bar in top shape and prevents fluid contamination, ensuring system performance.

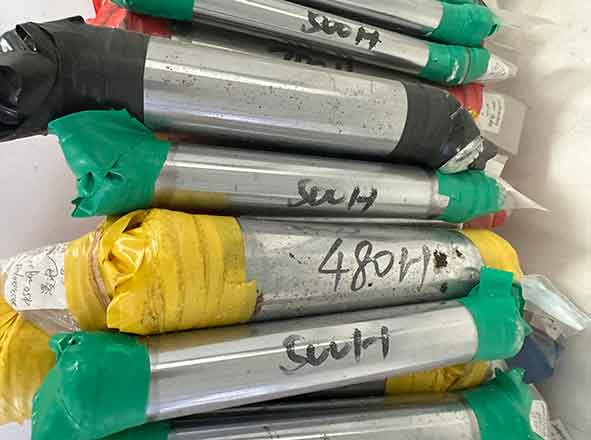

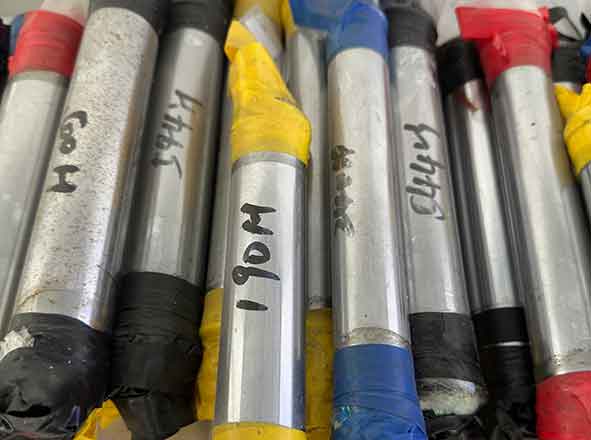

AISI 304 Chrome Plated Rod Packages
