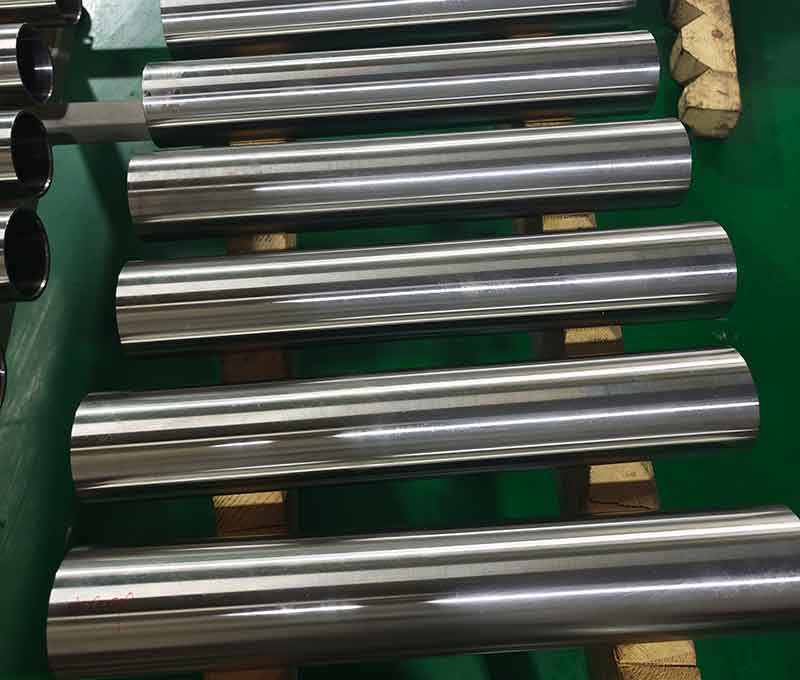

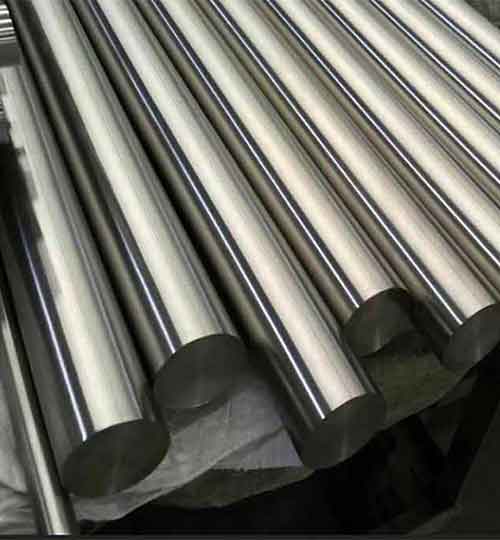

316 Stainless Steel Chrome Plated Rod
316 Stainless Steel Chrome Plated Rod/SUS316 Chrome Bar
Material Grade: 1.4401/1.4436/S31600/SUS316/316S31/316S33/X5CrNiMo17
Size in mm: 3-800 mm
Maximum Length : Up to 7500 MM or as request
Surface Finish: Cold (bright) drawn, smooth turned, centreless ground, peeled, hot rolled, hot rolled annealed, Bright, Polish, Rough Turned, Grinding, slit rolled edge, Centreless Ground & Black
Hard Chrome Plating Thickness : min.30 Microns to 100 Microns(As per request)
Surface Finish : RA0.1µm – RA0.4 µm
Chrome Surface Hardness : 850 to 1000HV(Standard) or as request
Straightness : 0.1 per meter max.
316 STAINLESS STEEL CHROME BAR RELATED STANDARD & EQUIVALENT GRADE
1.4401/1.4436
UNS S31600
JIS SUS316
BS 316S31/316S33
EN X5CrNiMo17
316 Stainless Steel Chrome Plated Rod Chemical Composition
Iron | 68.5% | Nitrogen | 0.05% |
Chromium | 16.25% | Molybdenum | 2.5% |
Nickel | 11.5% | Carbon | 0.04% |
Manganese | 1% | Phosphorus | 0.023% |
Silicon | 0.5% | Sulfur | 0.015% |
316 Stainless Steel Chrome Rod Equivalent Material
Old British | American Grade | UNS No | Euronorm | Japanese JIS | Swedish SS | ||
BS | En | No | Name | ||||
304S11 | 58E | 316 | S31600 | EN 1.4401 | X5CrNiMo17-12-2 | SUS 316 | 2347 |
316 Stainless Steel Chrome Plated Rod Applications
316 Stainless Steel Chrome Plated Rod Applications:
• Pneumatic / Hydraulic Cylinder Shaft
• Textile Components
• Pump Shafts & Rotors
• Fitness Equipment
• Automobile & Mechanical Components
• Plastic & Rubber Rolls, Moulds, Dies, Screws etc
our services of 316 Stainless Steel Chrome Plated Rod
- Value Added Services Surface Machining
Shearing
Heat Treatment
Production Bar Cutting
Chemical Milling
Turn, Ground, and Polishing
Trepanning
Precision Grinding
Rigidizing
Custom Packing - Other available forms Forging, Precision-Ground, Triangle, Channel, Billet, Blocks, T-Bar, Half-Round, Rounds, Hollow, Rod, Profiles, I/H, Rectangle, Ingot, Threaded, Angle
